- Interface Current Unavailable Report - details all unavailable interfaces
- Network Summary Dashboard - count of down interfaces by operational status
A default Statseeker installation contains a couple of ways to view details on currently down interfaces. In addition, custom reports, dashboards, and alerts can quickly and easily be configured to suit your requirements.

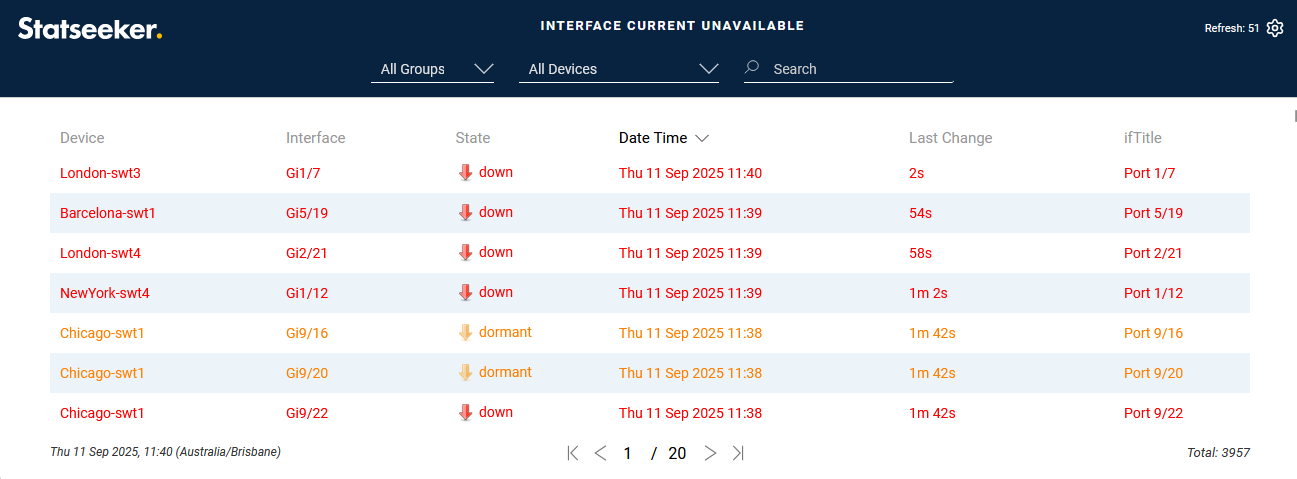

Interface Current Unavailable Report
The Interface Current Unavailable report details all interfaces that are currently considered unavailable (down, dormant, lowerLayerDown, notPresent, testing, unknown). This excludes all interfaces on any device which is currently offline. This report details:
- Device name, interface name and interface title
- The ifOperStatus of the interface, the time that it went into that state and the time since that state change
The report also offers drilldowns to the Device Viewer and an Interface Outages report, filtered to the selected interface.
To view this report for your entire network:
- Select All Groups or All Devices in the Console
- From the report list select Interfaces > Current Unavailable - you can type part of the report name in search field above the report list to filter the list
Network Summary Dashboard
Every Statseeker installation includes a number of default dashboards, one of these, the Network Summary, contains counts of unavailable interfaces broken down by the interfaces' operation status. This count and breakdown only include interfaces on currently reachable devices, if a device is down, then the interfaces on that device are not included here. The dashboard also has a "Last N Events" panel, which uses the Top N variable (located in the top left of the dashboard) to specify how many events to display. These events include, but are not restricted to, interface state change events.
To view the dashboard:
- Select Dashboards > Manage Dashboards in the main navigator
- Select Default Dashboards > Network Summary
