Overview

SLA reporting can be used to:

  • Confirm that SLA targets are being met (and by what margin), providing insight into future network design and infrastructure requirements
  • Highlight the most unreliable elements and areas in your network

Statseeker comes with pre-packaged SLA reports, and additional reports may be created via the Reports panel.

[top]




Configuring an SLA

To configure an SLA:

  • Select Admin Tool from the main navigator
  • Select User Profile/Grouping > Add / Edit SLAs
  • Click Add

This will display the SLA configuration panel.

  • Enter a name for the new SLA
  • Enter an availability Target (%)
  • Optionally filter the time range (within which the SLA will be applied) via the drop-down lists, or by manually editing the Query Info string, or passing the requirement off to the Advanced Timefilter Editor - leaving blank will set the SLA to be active 24hrs, 7 days/week

The Query Info field will be populated as you configure the time range via the drop-down lists but can also be manually edited or passed off to the Advanced Time Filter Editor as required. For details on manually editing time ranges or using the Advance Timefilter Editor, see Time Filters.

  • Click Add SLA when configuration is complete

The devices/interfaces associated with this SLA will have their availability, during the specified time range, compared to the target value to determine if they are maintaining compliance with the SLA.

Note: if the new SLA is a variation on an existing SLA, you can:

  • Select the existing SLA and click Copy
  • Update the configuration and click Add SLA
  • The search field above the SLA list is case-insensitive RegEx enabled

[top]


Associating an SLA with Devices/Interfaces

Once an SLA has been created, the SLA can be linked to a group/s containing devices and/or interfaces, doing so will provide the data required to populate SLA reports.

  • The Device Group SLA Availability (13months) requires that an SLA be linked to a group containing at least one device
  • The Interface Group SLA Availability (13months) requires that an SLA be linked to a group containing at least one device/interface
Note: ifOperStatus polling is used to monitor the availability of interfaces for SLA reporting. In addition to linking the SLA with interfaces, you will need to enable ifOperStatus polling for those interfaces in order to populate the Interface Group SLA Availability (13months) report, see Enable ifOperStatus Polling for details.

To link and SLA with a group of devices/interfaces:

  • Select Administration Tool > User Profile/Grouping > Add / Edit Groups
  • Select the group containing devices/interfaces that will be operating under the SLA
  • Set the Entity type to SLA
  • Select the SLA you wish to have applied to the contents of the group and use the button to add the SLA to the Include list

Note: you may wish to consider creating groups specifically for this purpose to ensure that the correct devices/interfaces, and only those devices/interfaces, are targeted by SLA reporting.

The SLA is now linked to the group contents and the Device Group SLA Availability (13months) reports will display data as is appropriate. The Interface Group SLA Availability (13months) report still requires that ifOperStatus polling be enabled on all interfaces you wish to report on, see Enable ifOperStatus Polling for details.

[top]


Enable ifOperStatus Polling

By default, ifOperStatus polling is disabled, and this can be enabled for select interfaces, or your network as a whole.

Note: prior to enabling ifOperStatus polling for newly discovered devices across your entire network, consider the potential consequences and determine if this is the correct action for your network. This may lead to:

  • Network and/or Statseeker load when applied to very large networks (>500,000 interfaces)
  • An unanticipated number of events being generated, depending on how you have configured alerting within Statseeker, due to client systems being switched on/off

[top]


Enable Default IfOperStatus Polling Network Wide

ifOperStatus polling can be enabled for all newly discovered devices across your entire network from within the Administration Tool.

  • Select Network Discovery - Advanced Options > Advanced Options
  • In the Discovery section, set OperStatus Polling Default to on
  • Run Discovery across the network, see the Discovery Process for details

[top]


Assign ifOperStatus Polling via Auto Grouping

ifOperStatus polling can be enabled for a selection of interfaces by configuring an Auto Grouping rule within the Administration Tool.

  • Select Administration Tool > Auto Grouping and click Add
  • Set a name for the rule
  • Click the Add button for Groups to populate and specify a new group for this purpose
  • Set the Group Type to Interface
  • Set Status to off
  • Add a group filter, specifying the group/s that contain the devices/interfaces you have associated with the SLA
Note: selecting a group containing devices while the Group Type is set to Interface will cause the Auto Grouping rule to populate the group with all interfaces found on the devices within the specified group/s.
  • Click Show Advanced Options
  • In the newly exposed Configuration section, click the Items > Add button and select Interface Options > ifOperStatus
  • Ensure that this is set to poll
  • Click Test Rule and review the output of the test

If the output from the rule suits your requirements:

  • Select Run Now
  • Click Save Rule

The rule will be run, any new groups specified by the rule will be created, groups will be populated according to the rule, and ifOperStatus polling will be enabled for the specified interfaces. Statseeker runs an hourly background process that will compile data for the report.

  • Ensure that any groups created by this rule are linked to an appropriate SLA record

[top]


Reporting on SLAs

SLA reporting is covered in a few stock reports provided with the standard Statseeker installation:

  • Ping > Availability - requires a group containing at least one device and a linked SLA, the group must be selected for running the report
  • Interfaces > Availability - requires a group containing at least one device/interface and a linked SLA, the group must be selected for running the report

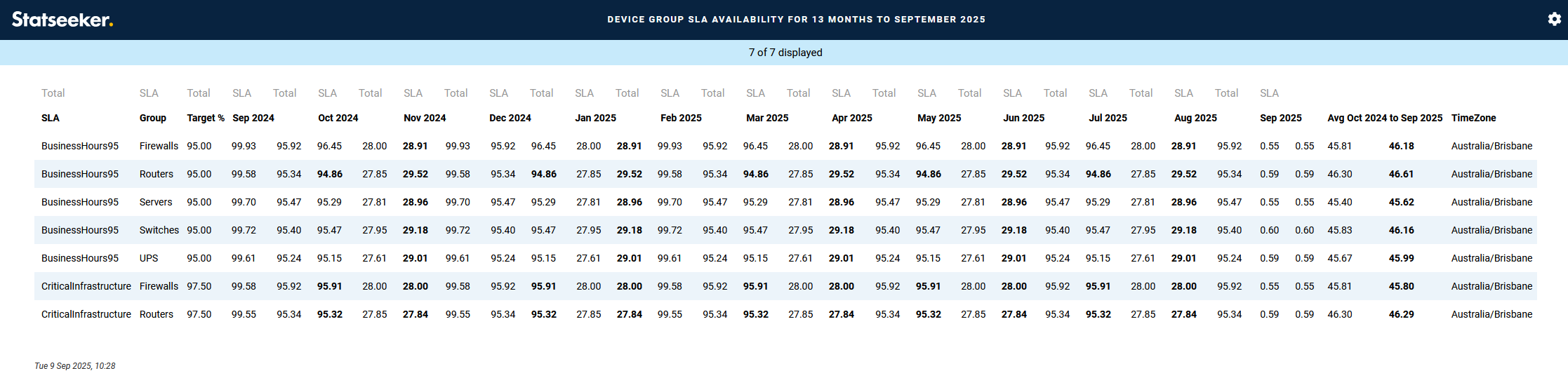

  • Historical / Management > Availability > Device Group SLA Availability (13 months) - requires a group containing at least one device and a linked SLA and can run against selected groups or All Groups
  • Historical / Management > Availability > Interface Group SLA Availability (13 months) - requires a group containing at least one interface, with ifOperStatus polling enabled, and a linked SLA

While the 13 month reports ignore the contents of the Console Time Filter, the Ping an Interface Availability reports will use this filter to refine the data presented.
