Overview

Statseeker provides NetFlow reporting via the Traffic Analyzer, a core component of Statseeker, which analyzes data collected from your configured NetFlow feeds. The Traffic Analyzer can interrogate data from NetFlow v5,7,9, and 10/IPFIX and sFlow data sources. For more information on configuring NetFlow data sources and collectors, see Netflow Configuration.

The Traffic Analyzer allows you to present NetFlow data via a range of customizable reports available in the Console Report List.


[top]


Reporting on NetFlow Traffic

To report on NetFlow traffic:

  • Select Nim Console > Report List > Traffic Analyzer

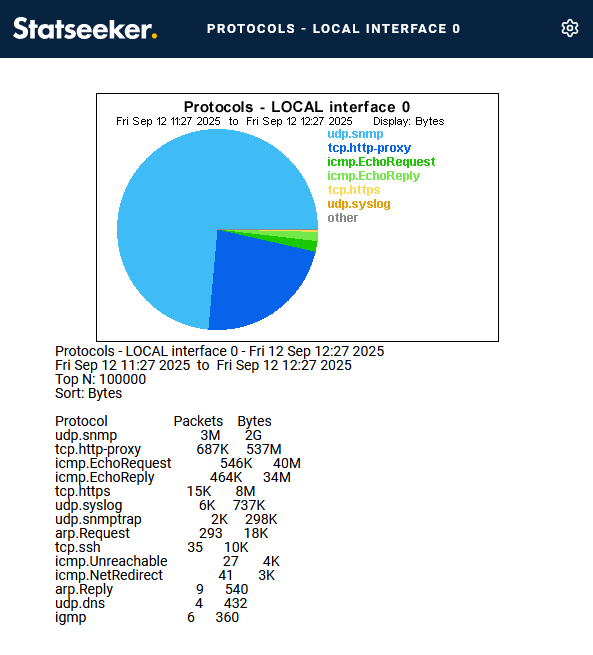

This displays the Traffic Analyzer window. This window displays:

  • Report List – a list containing the available reports
  • Traffic Collector – a list containing the available data sources. See Netflow Configuration for details on configuring NetFlow data sources.
  • Time Filter – the time filter to be used in the report. This functionality duplicates that from the Console, see Time Filters for more information.
  • General Options – additional filtering and presentation options for the report, see General Options for more information

The report is generated by:

  • Setting a Time Filter
  • Configuring the General Options to suit the report requirements
  • Selecting a Traffic Collector
  • Selecting a report from the Report List

[top]


General Options

The General Options offers an optional set of filter and layout options for your reports.

Address – the IP addresses to include/exclude from the report. This information should be provided in the following format:
inc/exc src/dst/both ipaddress/mask, where:

  • inc/exc refers to the filter being an include or exclude filter
  • src/dst/both refer to source (outgoing) / destination (incoming) / both (both) traffic with respect to the specified IP address
  • ipaddres/mask refers to an IP address with an optional address mask

E.g. inc src 10.5.10.0/24 specifies that the report contain outgoing traffic from IP addresses in the range of 10.5.10.0 – 10.5.10.255.
These filters can be joined with an and/or operator. E.g. inc src 10.5.10.0/24 or inc src 10.5.20.17, all outgoing traffic from IP addresses in the range of 10.5.10.0 – 10.5.10.255, as well as traffic outgoing from 10.2.20.17.
E.g. inc src 10.5.10.0/24 and inc dst 10.5.20.17 – all traffic going from 10.5.10.* to 10.2.20.17.


Protocol – filter on the protocols to include/exclude in the report in the format inc/exc protocol.subprotocol, e.g. inc udp.* – include all UDP traffic. Multiple space separated include/exclude rules can be added e.g. inc tcp.ftp inc tcp.tp-data


The Top N is used to specify the number of results to return for each reporting interval over the reporting period.


Interval – the reporting interval/frequency over the reporting period defined by the time filter. The format is Nd | Nh | Nm, e.g. 1d – every day; 2h – every two hours.

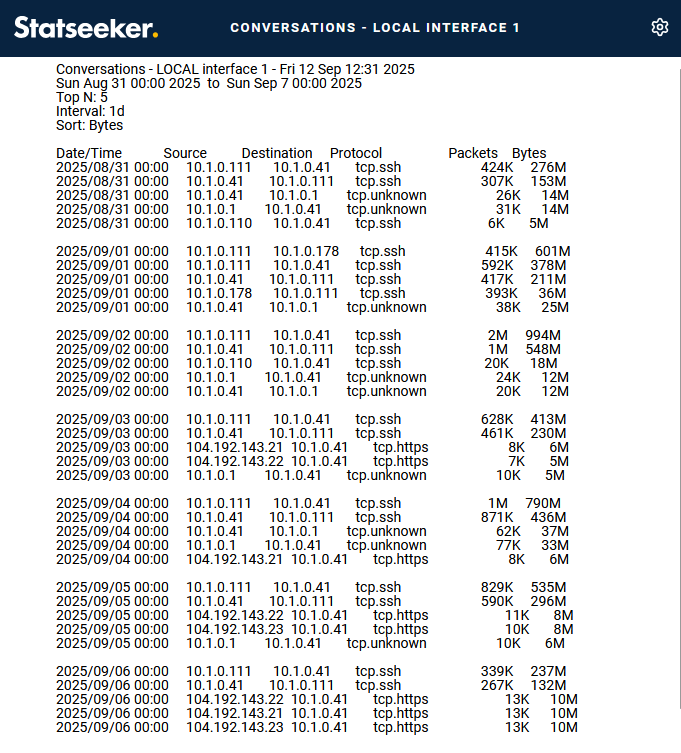

A report with:

  • Report = Conversations
  • Time Filter = Last Week
  • Top N = 5
  • Interval = 1d
  • Sort = Bytes

Would show the 5 largest conversations involving the target device for each day over the previous week.

Note: The traffic analyzer displays a single graph for each report so selecting an interval will result in tabular-only output.


Sort – the metric by which to sort the returned results.


Format – the format for displaying the metric data.


Display – the report style to use (tabular, graph, both).
